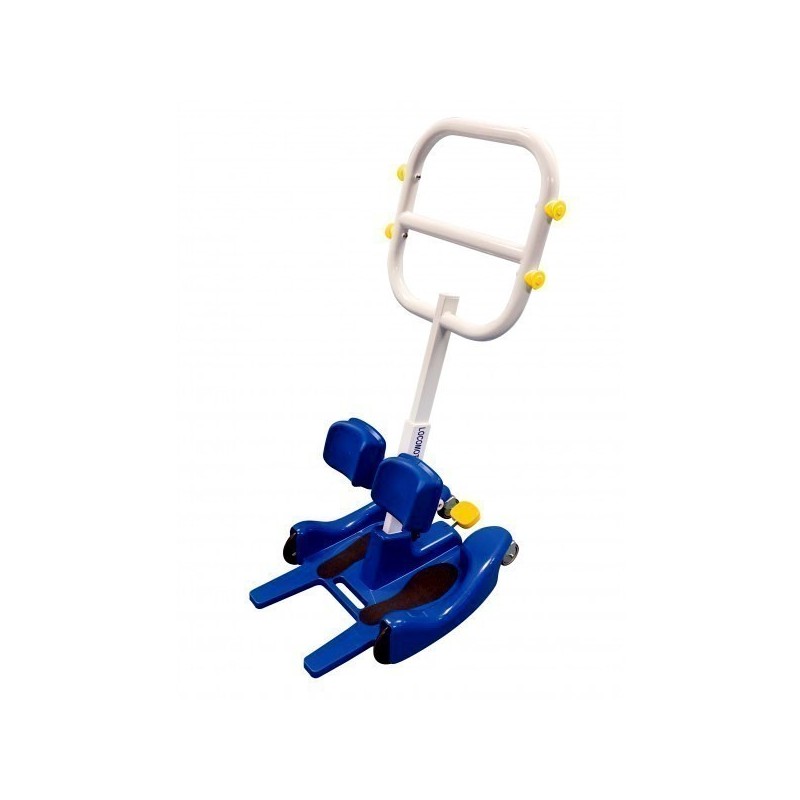

Locomotion Patient Turner - LOCO-501
- 200kg SWL standing transfer aid enabling single carer operation for short-distance seated transfers between chair, commode, toilet and bed, with rear-wheel steer for manoeuvrability in confined spaces such as care home bathrooms and hospital bedside areas under Manual Handling Operations Regulations 1992.
- Single-handed shin pad height adjustment with independent swivel and lateral movement allows the shin support to be precisely positioned to the patient's leg dimensions without requiring the carer to manually hold the patient during the adjustment phase, reducing the manual handling exposure for the carer during the setup phase of the transfer.
- Promotes safe standing for partially weight-bearing patients with central mast for safe leg positioning, single-point brake for platform stability during the transfer, and dual height accessory attachment points for additional clinical equipment integration during the transfer episode.
- LOLER 1998 relevant standing transfer device requiring periodic thorough examination by a competent person, maintenance records and SWL compliance at 200kg for all users in care home, NHS ward and community settings where standing transfers are a routine daily care activity.
Locomotion Patient Turner LOCO-501: 200kg SWL Single-Carer Standing Transfer Aid
The Locomotion Patient Turner LOCO-501 is a standing transfer aid for partially weight-bearing patients making short-distance transfers between seated positions - chair to commode, commode to toilet, bedside chair to bed - with 200kg safe working load and single carer operational capability. The rear-wheel steer enables manoeuvrability in the confined spaces of care home bathrooms, hospital bedsides and home toilet areas where conventional transfer frames cannot be manoeuvred. Single-handed shin pad adjustment with independent swivel and lateral movement positions the leg support to individual patient dimensions without additional carer manual handling, and a central mast, single-point brake and dual accessory attachment points complete a complete clinical transfer platform.
Product Specifications
| Specification | Detail |
|---|---|
| Reference | LOCO-501 |
| Safe Working Load (SWL) | 200kg |
| Steering | Rear-wheel steer for confined space manoeuvrability |
| Shin Pad | Single-handed height adjust, independent swivel and lateral movement |
| Brake | Single-point brake |
| Mast | Central mast for leg positioning |
| Accessories | Dual height attachment points |
| Indication | Single-carer short-distance seated transfers |
Regulatory and Clinical Compliance
LOLER 1998 applies to the LOCO-501 as a device used in the course of lifting operations involving people. The 200kg SWL is the maximum patient weight for which the device is designed and must not be exceeded. LOLER requires periodic thorough examination - typically every six months for equipment in regular use - by a competent person, with records maintained and available for inspection. Manual Handling Operations Regulations 1992 TILE assessment should be completed for each patient using the LOCO-501 to confirm the appropriateness of single-carer operation for that patient's weight, mobility level and cognitive capacity. CQC Regulation 10 (Dignity and Respect) is supported by the LOCO-501's single-carer design, which reduces the number of staff involved in a sensitive personal transfer task while maintaining safety.
Frequently Asked Questions
What is the difference between the LOCO-501 and the Rotastand range?
The LOCO-501 is a wheeled standing transfer aid that moves with the patient during the transfer, enabling short-distance travel across a room between seated positions - the patient stands on the LOCO-501's footplate and the device moves with them to the destination. The Rotastand range (LOCO-102, LOCO-311, LOCO-600) is designed for pivot transfers where the patient rotates on the spot between two adjacent seated surfaces without travelling across a room. The LOCO-501 is the appropriate choice when the transfer distance is more than a direct pivot - for example, moving from a bedside chair to a commode in a corner - while the Rotastand is preferred for immediate pivot transfers between adjacent surfaces.
Can the LOCO-501 be used on carpeted floors in care home environments?
The LOCO-501 can be used on carpeted floors, though the resistance of carpet against the wheels increases the force required to move the device and may affect manoeuvrability in confined spaces. The rear-wheel steer design assists with carpet navigation by concentrating the directional control at the rear, but thick or high-pile carpets may create sufficient resistance to make single-carer manoeuvring more difficult for heavier patients. Assess the specific floor surface and patient weight combination during the occupational therapy assessment before confirming single-carer operation on carpet for a particular patient.
Part of our specialist Patient Moving and Handling Equipment range, supporting safe patient transfers across care homes, hospitals, and home care environments.
