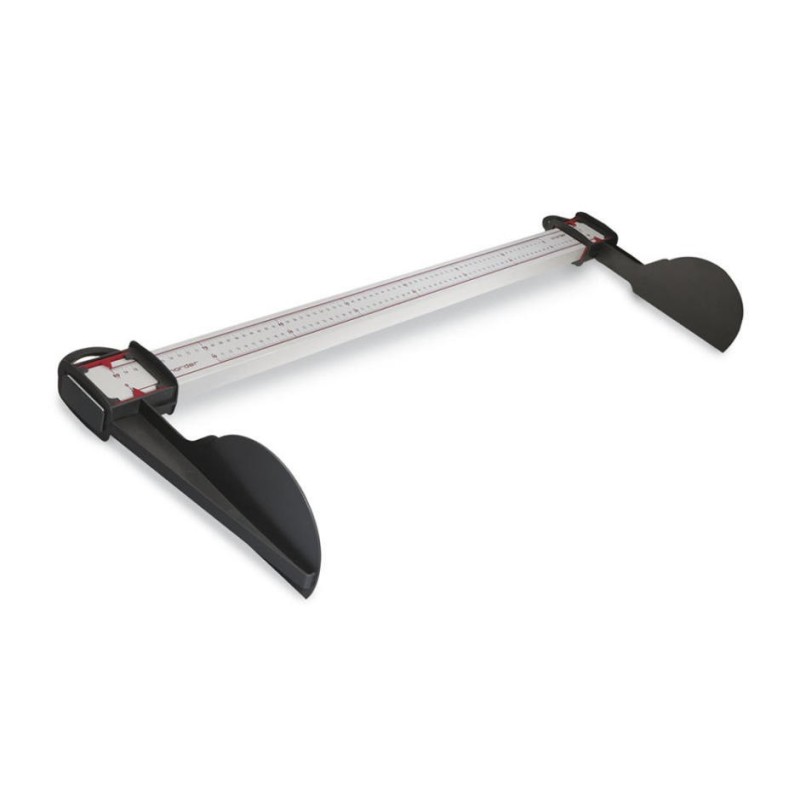

Marsden HM-80P Baby and Toddler Measuring Rod, 10cm–80cm Range, 1mm Graduations
- Analogue baby measuring rod, 1mm graduations, 10cm to 80cm range, providing accurate supine infant length measurement for WHO growth chart centile plotting and RCPCH growth monitoring in health visitor, GP surgery and community clinical settings.
- Lightweight and portable for inclusion in the community practitioner's kit, compatible with M-400 and M-410 baby scales as a manual measurement companion, with 1mm graduated scale for precise infant length recording without digital connection requirements.
- 10cm to 80cm range covers the full practical infant length spectrum from premature neonates through toddlers, with a fixed measuring surface that minimises positional variation during infant length recording compared with flexible measuring tapes.
- Cost-effective manual alternative to the HM-80D digital rod for clinical settings where digital display and data transfer connectivity are not required, while maintaining the 1mm measurement precision recommended for accurate WHO growth chart plotting.
Marsden HM-80P: Analogue Baby Measuring Rod with 1mm Precision for Infant Length Assessment
The Marsden HM-80P is a portable analogue infant measuring rod providing 1mm-graduated supine length measurement across a 10cm to 80cm range, covering the full clinical spectrum from premature neonates to toddlers. Compatible with the M-400 and M-410 baby scales as a manual measurement companion, the HM-80P provides the length component required for complete WHO growth chart centile plotting without the digital connection requirements of the HM-80D, making it the practical choice for health visitors and community practitioners whose scales do not have digital height rod connectivity or who prefer a manual measurement workflow.
The rigid measuring rod design minimises the positional measurement variation that occurs with flexible measuring tapes, producing more consistent length readings across different clinical operators measuring the same infant.
Product Specifications
| Specification | Detail |
|---|---|
| Type | Analogue measuring rod, manual reading |
| Graduation | 1mm |
| Range | 10cm to 80cm |
| Compatible Scales | M-400, M-410 and all portable baby scales |
| Design | Rigid rod for reduced positional measurement error |
| Clinical Use | Supine infant length, WHO centile chart, faltering growth |
Regulatory and Clinical Compliance
The HM-80P's 1mm graduation meets the measurement precision recommended by the RCPCH for infant length recording and WHO growth chart centile plotting for children under two years. WHO growth monitoring guidance specifies that infant length should be measured in the supine position using a rigid measuring board or rod rather than a flexible tape measure, which is susceptible to stretching, misalignment and soft tissue compression that reduce measurement accuracy. The HM-80P's rigid construction meets this clinical standard in community settings where a wall-mounted measuring board is unavailable, supporting the same measurement protocol that underpins WHO centile reference data for length-for-age and weight-for-length tracking.
Frequently Asked Questions
When should the HM-80P be chosen over the HM-80D digital rod?
Choose the HM-80P when digital display and data connectivity are not required or available. If you use an M-400 or M-410 scale without Bluetooth and your clinical setting records growth measurements manually on paper-based WHO growth charts, the HM-80P provides the same 1mm measurement precision as the HM-80D at lower cost without requiring a digital connection. The HM-80P is also compatible with all other baby scale models in the Marsden range, not just the M-400 and M-410, making it the more versatile manual option across a mixed-scale community health team.
Is it clinically acceptable to measure infant length with a flexible tape measure instead of a rigid rod like the HM-80P?
Flexible tape measures are not recommended for infant supine length measurement and are specifically excluded from WHO and RCPCH measurement protocols for 0-2 year growth monitoring. Tape measures are susceptible to extension under tension, soft tissue compression at the head and heel, and lateral deviation along the infant's body that collectively introduce measurement errors of 1cm or more in a 60cm infant. These errors are clinically significant in centile tracking: a 1cm error at this length shifts the centile result by approximately 1-2 centile bands, which may result in false positive or false negative assessment of faltering growth in community health visitor monitoring.
Part of our Class III approved Medical Scales and Measuring range. Patient height measurers provide accurate standing and seated height measurement for clinical assessment in care homes and NHS environments.
NCL-HM80P
