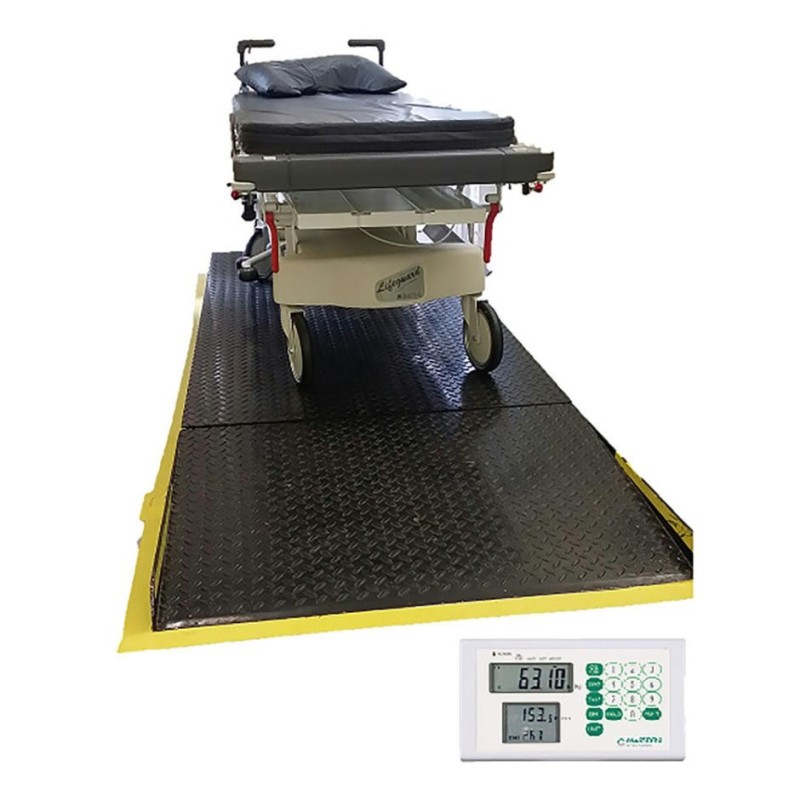

Marsden M-910 Bed and Trolley Weigher, Class III Approved, Large Platform Medical Scale
- Class III Approved, 600kg to 1000kg capacity with 200g to 500g graduations, meeting NAWI Directive requirements for hospital admissions weighing, suitable for beds, trolleys and wheelchairs in NHS and independent hospital settings.
- Extra-wide platform with gradual 1200mm ramps accommodates the full range of NHS hospital trolleys, standard and bariatric beds, and most wheelchair configurations, with anti-slip durbar surface for secure castor contact.
- Wall-mountable indicator for fixed clinical integration, with Preset Tare for bed and trolley weight deduction, Hold for stable reading capture and full numeric keypad for immediate BMI calculation on admission.
- Custom platform dimensions available to match specific trust requirements, with optional printer and connectivity for EPR record-keeping and NHS audit trail documentation.
Marsden M-910: Class III Approved Large Platform Bed, Trolley and Wheelchair Weigher
The Marsden M-910 is a large-format floor-based weighing platform for NHS hospitals and specialist clinical facilities requiring a single scale capable of handling beds, patient trolleys and wheelchair-using patients. The extra-wide platform with gradual 1200mm ramps and anti-slip durbar surface accommodates the full range of standard and bariatric trolleys used across NHS trusts, with custom dimension options available for specific trust configurations that fall outside standard sizing.
Class III approved under the NAWI Directive, the M-910 is specified across NHS admission departments, A&E units and rehabilitation settings where a versatile, high-capacity weighing point is required as a permanent clinical fixture.
Product Specifications
| Specification | Detail |
|---|---|
| Capacity Options | 600kg to 1000kg |
| Graduations | 200g to 500g |
| Approval | Class III Approved (NAWI Directive) |
| Ramp Dimensions | 1200mm length (x2), gradual incline |
| Surface Finish | Anti-slip durbar |
| Indicator Mounting | Wall mount or column, position configurable |
| Key Functions | Tare, Preset Tare, Hold, BMI calculation |
| Platform Dimensions | Standard and custom options available |
Regulatory and Clinical Compliance
Class III approval under the NAWI Directive confirms the M-910 is authorised for patient monitoring, diagnosis and treatment in NHS and regulated care settings. The extra-wide platform and gradual ramps support NHS Moving and Handling Policy compliance by minimising the force required to move loaded beds and trolleys onto the scale, reducing musculoskeletal risk to clinical staff. The wall-mounted indicator option supports fixed workflow integration in admission units, avoiding floor-level obstruction and ensuring clear weight display for staff operating the scale from a standing position at the bedside.
Frequently Asked Questions
Can the M-910 weigh patients in both beds and wheelchairs using the same scale?
Yes. The M-910's extra-wide platform accommodates hospital trolleys, standard and bariatric beds, and most wheelchair types, making it a single weighing point solution for admission units that handle diverse patient mobility needs. The Preset Tare function deducts the weight of the trolley, bed or wheelchair, delivering an accurate patient-only reading in each case without changing scale configuration between patient types.
Are custom platform dimensions available for specific NHS trust requirements?
Yes. The M-910 is available with custom platform dimensions for trusts whose standard trolley or bed sizes fall outside the range covered by Marsden's standard platform options. This typically arises where a trust uses a specific bariatric bed model with wider than standard castors, or where the physical space available in an admission or A&E area requires a non-standard footprint. Contact Marsden's clinical sales team with your specific trolley or bed dimensions to discuss configuration options.
Part of our Class III approved Medical Scales and Measuring range. Medical bed scales enable accurate weighing of immobile patients without transfer in care homes and NHS settings.
NCL-M910
