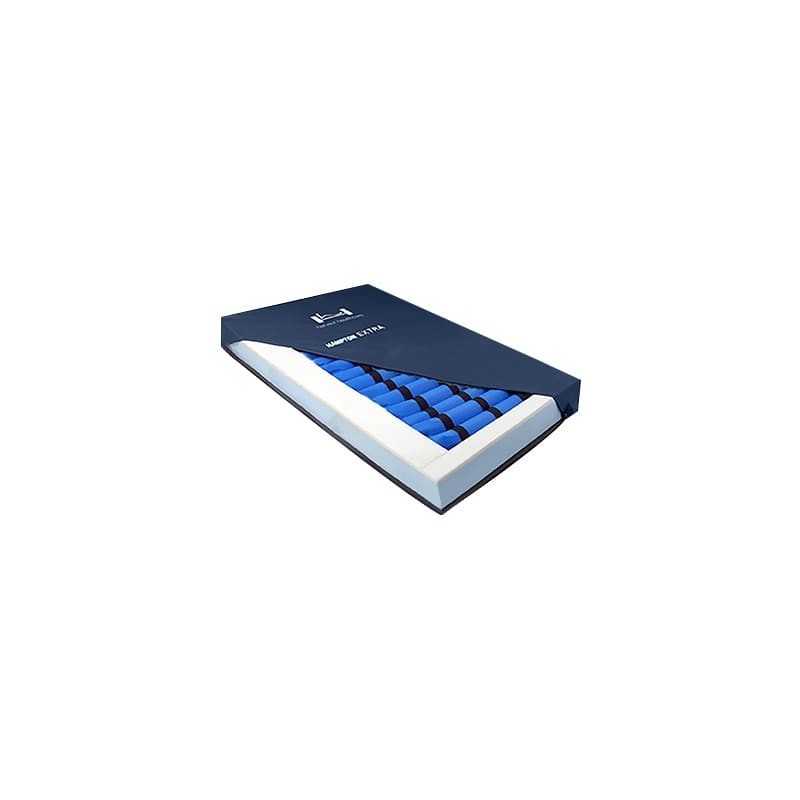

Hampton Extra Active Mattress - Plus-Size Pressure Care for Very High-Risk Patients.
- 1200mm Width with Foam Surround for Bariatric Safety - the Hampton Extra is designed for 1200mm wide profiling beds including the Community 1200 and Ultimate 1200, providing a 2000 x 1200 x 230mm alternating mattress surface for bariatric residents; the foam surround around the perimeter of the cell array extends the cushioned surface to the mattress edge, reducing the risk of lateral pressure at the rail junction during side transfers and preventing the resident from contacting the rigid bed frame at the mattress edge during repositioning or sleep.
- 18 Nylon-TPU Cells with 317kg SWL - the 17 alternating and 1 static pillow cell system delivers dynamic pressure redistribution for bariatric residents at very high risk of pressure ulceration; the SWL of 317kg (50 stone) on the Harvest 3 pump addresses the bariatric weight range where standard mattresses with lower SWL ceilings cannot safely be deployed; SWL verification against the resident's documented weight is mandatory before deployment under MHOR 1992 and must be documented in the equipment record.
- Harvest 3 Pump Exclusively - the Hampton Extra requires the Harvest 3 pump to operate at the correct pressure for the 1200mm cell array and to achieve the rated SWL of 317kg; no other Harvest pump can be used with this mattress; the Harvest 3 must be procured alongside or confirmed as available at the care setting before the Hampton Extra is prescribed, and the pump-to-mattress pairing must be documented in the equipment register.
- 4-Way Stretch Welded PU Cover - Crib 5 - the vapour-permeable water-resistant welded PU cover provides NHS IPC decontamination compliance and BS 5852 Crib 5 fire safety for care home and hospital bariatric settings; the 4-way stretch accommodates the wider cell inflation profile of the 1200mm array; all cells are interchangeable for maintenance; bed linen must be compatible with the 1200mm mattress width and must not restrict cell movement during the alternating cycle.
Hampton Extra Active Mattress - 18 Cells - 1200mm Bariatric - 317kg SWL - 2000x1200x230mm
The Hampton Extra Active Mattress by Harvest Healthcare is an 18-cell bariatric replacement alternating pressure mattress for residents at very high risk requiring a 1200mm wide profiling bed. The 17 alternating nylon-TPU cells and 1 static pillow cell deliver continuous pressure redistribution across the wider surface at a SWL of 317kg (50 stone). The foam surround extends the cushioned surface to the mattress edge to support safer lateral transfers. The 4-way stretch Crib 5 welded PU cover provides NHS IPC and fire safety compliance. Compatible with Harvest 3 pump only. For Community 1200 and Ultimate 1200 bed frames.
Specifications
| Specification | Detail |
|---|---|
| Type | Alternating pressure replacement mattress - bariatric 1200mm |
| Air Cells | 17 alternating nylon-TPU cells + 1 static pillow cell (18 total) |
| Foam Surround | Perimeter foam to mattress edge for transfer support |
| Dimensions | 2000 x 1200 x 230mm |
| Safe Working Load | 317kg (50 stone) |
| Cover | 4-way stretch welded PU - VP, water resistant, Crib 5 |
| Pump Compatibility | Harvest 3 only |
| Bed Compatibility | Community 1200, Ultimate 1200 profiling beds |
| Reference | NCL-HAMHAMP002 |
| Clinical Standard | NICE CG179 (very high risk, bariatric pressure care) |
Regulatory Compliance
The Hampton Extra is a Class IIa active medical device under Medical Devices Regulation 2017/745. Clinical selection requires validated pressure risk assessment per NICE CG179 confirming very high-risk status in a bariatric resident. SWL must be verified against the resident's documented weight before deployment; MHOR 1992 documentation must record this verification. The Harvest 3 pump must be confirmed available and dedicated to this mattress before prescription. Bed frame must be confirmed as Community 1200 or Ultimate 1200 before procurement. The Crib 5 welded PU cover meets BS 5852 institutional bariatric fire safety requirements. Equipment register records and MDR conformity documentation must be maintained for CQC Regulation 12 compliance.
Frequently Asked Questions
What is the clinical role of the foam surround, and how does it differ from the standard mattress edge?
A standard alternating pressure mattress has an air cell array that extends to or near the mattress edge; when a bariatric resident is positioned near the edge or during a lateral transfer, the outermost cell at the mattress edge is the only cushioning between the resident and the rigid bed frame or rail junction. If that cell is in its deflation phase during the transfer, the resident may contact the bed frame structure with minimal cushioning, creating a pressure point at the hip or thigh at the moment of highest positional load. The foam surround on the Hampton Extra wraps the perimeter of the cell array in a foam border that provides continuous cushioning at the mattress edge regardless of the alternating cycle phase. This is particularly important in bariatric care where the combination of higher body mass and wider lateral spread means the mattress edge is more frequently in contact with the resident during repositioning and where pressure injuries at the lateral thigh and hip are a recognised risk site.
Why is the Hampton Extra limited to the Harvest 3 pump, and can any other pump be used in an emergency?
The Hampton Extra is a 1200mm wide cell array with a SWL of 317kg, which requires higher airflow and pressure output than the Harvest 1, 2, or 250 pumps can deliver to maintain correct cell inflation pressure across the wider array under bariatric load. The Harvest 3 is the only pump in the range rated for the combination of cell count, array width, and maximum user weight that the Hampton Extra specifies. Using an incompatible pump would result in under-inflation of the cells, which would reduce pressure redistribution effectiveness, increase the risk of bottoming out under bariatric load, and operate the mattress outside its validated clinical specification. No alternative pump should be used, including in emergency situations; if the Harvest 3 pump fails, the manufacturer's emergency protocol should be followed and a replacement pump sourced before restarting therapy. The pump-to-mattress pairing must be documented and the Harvest 3 serial number recorded in the equipment register.
